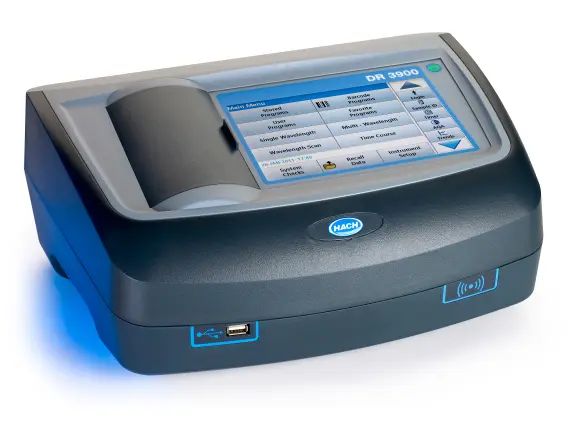

UV VIS Spectrophotometer

Cuvette Compatibility 2:1 inch rectangular and round cell

Cuvette Compatibility 3:optional 100 mm rectangular cell with additional adapter

Data Logger:5000 data points (result, date, time, sample-ID, user-ID)

Dimensions (H x W x D):215 mm x 500 mm x 460 mm

Display:TFT 7" WVGA color touch

Enclosure Rating:IP20 with closed lid

Includes:1 x Power Cord (US, EU)
1x Universal-Adapter
1x Dust Cover
Matched pair of 1 inch glass sample cells
Printed multilingual basic user manaul (en, fr, es, pt, zh, jp, ko)

Mains Connection 2:50 - 60 Hz

Manual Languages:en, es, fr, ja, ko, pt, zh

Operating Conditions:10 - 40 °C, max. 80% relative humidity (non-condensing)

Optical System:Reference beam, spectral

Photometric Accuracy:5 mAbs @ 0.0 - 0.5 Abs
<1% @ 0.5 - 2.0 Abs @ 546 nm

Photometric Linearity:< 0.5 % - 2 Abs

Photometric Linearity 2:1 % at > 2 Abs with neutral glass at 546 nm

Photometric Measuring Range:± 3 Abs

Power Requirements:100 - 240 V

Power requirements (Hz):50/60 Hz

Power requirements (Voltage):110 - 240 V AC

Preprogrammed Methods:> 240

Sample Cell Compatibility:10, 20, 30, 50 mm rectangular cell

Scanning Speed:900 nm/min (in 1 nm steps)

Source Lamp:tungsten (visible range) , deuterium (UV range)

Specific Technology:RFID not applicable with this model

Spectral Bandwidth:2 nm

Storage conditions:-25 °C to 60 °C max. 80% relative humidity (non-condensing)

Stray Light:KI-solution at 220 nm < 3.3 Abs/ < 0.05%

User Interface Languages:bg, cn, cz, da, en, es, fr, gr, hr, hu, it, jp, kr, nl, pl, pt, ro, ru, sl, sl, sv, tr

User Programs:200

Warranty:12 months

Wavelength Accuracy:± 1 nm

Wavelength Range:190 - 1100 nm

Wavelength Reproducibility:< 0.1 nm

Wavelength Resolution:0.1 nm

Wavelength Selection:automatic

Weight:11 kg
