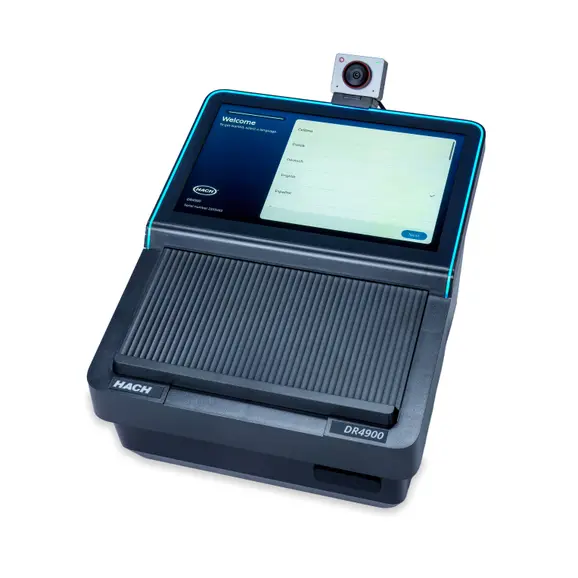

Laboratory Spectrophotometer, with camera

Accuracy:±1.5 nm (340 - 900 nm)

Altitude:2000 m maximum

Camera:Yes

Certifications:CE, UKCA, CMIM, FCC, ISED, certified to UL and CSA safety standards by TÜV

Data Logger:> 10,000 measured values (measured values, date, time, sample ID, user ID)

Dimensions (H x W x D):226 mm x 255 mm x 344 mm

Display:25.4 cm

Enclosure Rating:IP20

Indoor/Outdoor:Indoor

Interfaces:Use only shielded cable with maximum length of 3 m for:
USB type A and type C (front side)
USB type A and type C (back side)

Use only shielded cable (e.g., STP, FTP, S/FTP) with maximum length of 20 m for:
1x Ethernet

Light source:Halogen lamp

Operating Conditions:10 - 40 °C, maximum 80% relative humidity, non-condensing

Operating Mode:Transmittance (%), absorbance (Abs) or concentration

Optical System:Reference beam, spectral

Over voltage category:II

Photometric Accuracy:5 mAbs at 0.0 - 0.5 Abs
1% at 0.50 - 2.0 Abs

Photometric Linearity:< 0.5% - 2 Abs
≤ 1% at > 2 Abs with neutral glass at 546 nm

Photometric Measuring Range:±3.0 Abs (340 - 900 nm)

Pollution Degree:2

Power requirements (Hz):50/60 Hz

Power requirements (Voltage):100 - 240 VAC

Power Supply:Benchtop Power Supply

Preprogrammed Methods:˃ 240

Protection Class:Class I

Sample Cell Compatibility:Rectangular: 10 mm, 50 mm, 1 inch
Round: 13 mm, 16 mm, 1 inch

Scanning Speed:≥ 8 nm/s (in increments of 1 nm)

Spectral Bandwidth:5 nm

Storage conditions:-40 - 60 °C, maximum 80% relative humidity, non-condensing

Stray Light:< 0.1% T at 340 nm with NaNO₂

User Programs:˃ 100 user programs

Warranty:12 months

Wavelength Accuracy:± 1.5 nm (wavelength range 320 - 1100 nm)

Wavelength Calibration:Automatic

Wavelength Range:320 - 1100 nm

Wavelength Reproducibility:± 0.1 nm

Wavelength Resolution:1 nm

Wavelength Selection:Automatic, based on the procedure selected

Weight:4.8 kg
