Spectrophotometer

Spectrophotometer

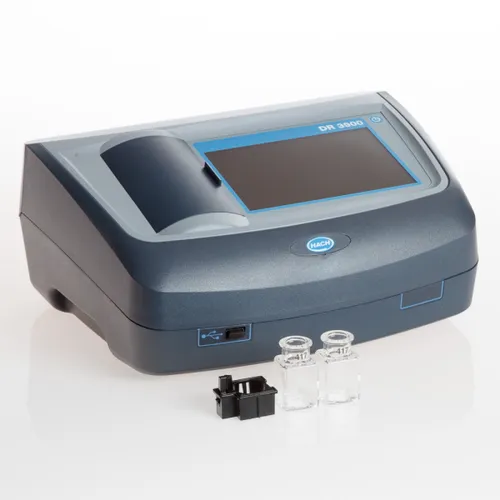

When accurate results can’t be compromised, water professionals trust the DR3900 Laboratory Spectrophotometer. It is a visible spectrum spectrophotometer (320–1100 nm), providing the range needed for a wide variety of water analysis applications.
Known for its reliability and consistent performance, the DR3900 helps build confidence in every measurement—helping you avoid unexpected surprises and deliver data you can stand behind.

Specifications

Beam Height:10 mm

Data Logger:2000 measured values (Result, Date, Time, Sample ID, User ID)

Dimensions (H x W x D):151 mm x 350 mm x 255 mm

Display:7" TFT

Display Resolution:WVGA (800 pix x 480 pix)

Display Size:7 inch (17.8 cm)

Display Type:Colored touch-screen

Enclosure Rating:IP40

Interfaces:USB type A (2)
USB type B
Ethernet
RFID sensor

Manual Languages:English
French (CDN)
Spanish (SA)
Portuguese (BR)
Chinese
Japanese
Korean

Operating Conditions:10 - 40 °C

Operating Mode:Transmittance (%), Absorbance and Concentration, Scanning

Optical System:Reference beam, spectral

Photometric Accuracy:5 mAbs @ 0.0 - 0.5 Abs

Photometric Accuracy 2:1 % at 0.50 - 2.0 Abs

Photometric Linearity:< 0.5% - 2 Abs
2 Abs with neutral glass at 546 nm

Photometric Measuring Range:± 3.0 Abs (wavelength range 340 - 900 nm)

Power Requirements:With external power supply

Power requirements (Hz):50/60 Hz

Power requirements (Voltage):110 - 240 V AC

Power Supply:Benchtop Power Supply

Preprogrammed Methods:> 240

Sample Cell Compatibility:Rectangular: 10 mm, 50 mm, 1 inch; round: 13 mm, 16 mm, 1 inch

Source Lamp:Gas-filled Tungsten (visible)

Specific Technology:RFID not applicable with this model

Spectral Bandwidth:5 nm

Standard accessories:None

Storage conditions:-40 - 60 °C

Stray Light:< 0.1% T at 340 nm with NaNO2

User Interface Languages:Bulgarian, Chinese, Croatian, Czech, Danish,
Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese, Korean,
Polish, Portuguese - Brazil, Portuguese,
Russian, Serbian, Slovakian, Slowenian,
Spanish, Swedish, Turkish

User Programs:100

Warranty:12 months

Wavelength Accuracy:± 1.5 nm (wavelength range 340 - 900 nm)

Wavelength Calibration:Automatic

Wavelength Range:320 - 1100 nm

Wavelength Reproducibility:± 0.1 nm

Wavelength Resolution:1 nm

Wavelength Selection:Automatic

Weight:4.2 kg

Features

Simple Preparation

TNTplus vials use DosiCaps that are easier to use than Powder Pillows or Liquid Reagents, without any risk of contamination.
The boxes and vials are color-coded for fast and easy parameter and range recognition of exactly the test you need.
Step-by-step illustrated test methods are printed on the box as quick reference or can be called up in the instrument menu.

Fast execution

A 2D barcode on the TNTplus vial is automatically read by the Hach DR spectrophotometer to identify the appropriate method and take the measurement. The vial spins to take 10-fold absorbance readings that will be averaged for result determination to exclude scratches and fingerprints. Instrument calibration verification and high instrument stability all combine to eliminate the need to run reagent blanks.

Comprehensive Documentation

Measurement results are documented on the detailed level with timestamp, operator ID, absorbance reading, and calculated concentration. The 2D barcode delivers the lot number and expiry date, logged with every result.

*RFID technology currently available in the US, Puerto Rico, Austrailia, New Zealand, and Colombia only.

Customizable

With the ability to store hundreds of user-determined methods, operators are able to tailor the DR3900 to meet the everyday needs of the plant.
Being able to optimize and customize the method portfolio, combined with regular software updates and Claros connectivity, makes the DR3900 the ultimate solution to water quality lab needs.
