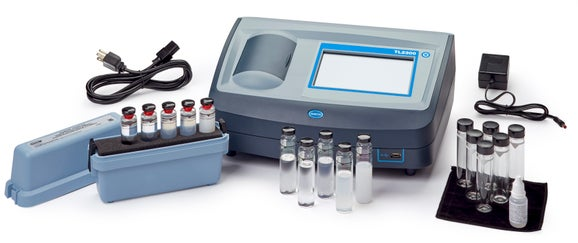

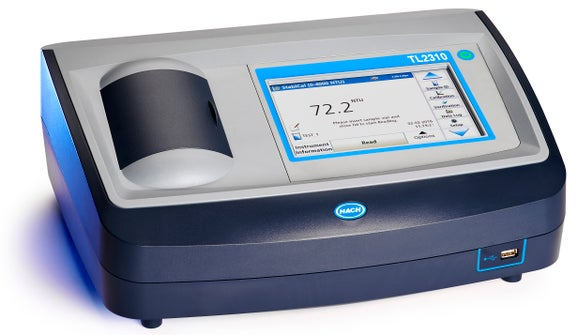

TL2310 LED Turbidimeter, ISO, 0 - 1000 NTU
The TL2310 LED Laboratory Turbidimeter provides precise and reliable turbidity measurements and meets the ISO 7027 standards. Designed with accuracy and user convenience in mind, this benchtop turbidimeter simplifies water quality testing. Featuring a robust LED light source (860 ± 30 nm), the TL2310 Lab Turbidimeter ensures consistent, dependable results across a measurement range of 0–1000 NTU.
Specifications
Accuracy:±2% of reading plus 0.01 FNU/NTU from 0 - 1000 FNU/NTU
Air Purge:Dry nitrogen or instrument grade air (ANSI MC 11.1, 1975)
0.05 L/s at 69 kPa (10 psig); 138 kPa (20 psig) max
Hose barb connection for 1/8-inch tubing
Certifications:CE, KC, RCM
Communication:USB
Compliance:ISO
Data logging:2000 total logs, includes reading log, verification log and calibration log
Dimensions (H x W x D):153 mm x 395 mm x 305 mm
Display:17.8 mm colour touch screen
Interface:2 USB-A ports for USB flash drive, external printer, keyboard and barcode scanner
Light source:Light-emitting diode (LED) at 860 ± 30 nm
Measurement method:Nephelometric
Model:TL2310 ISO
Operating temperature range:0 - 40 °C
Power requirements (Amps):3.4 A
Power requirements (Hz):50/60 Hz
Power requirements (Voltage):100 - 240 VAC
Range:0 - 1000 NTU (ISO)
NTU/FNU: 0 - 1000
Reading modes:Single, continuous, Rapidly Settling Turbidity, signal averaging on or off
Regulatory:Meets ISO 7027, DIN EN 27027, DIN 38404 and NFT 9033
Repeatability:±1% of reading or 0.01 FNU/NTU, whichever is greater (under reference conditions)
Response time:Signal averaging off: 6.8 seconds / Signal averaging on: 14 seconds (when 10 measurements are used to calculate the average)
Sample cell compatibility:Round cells 95 x 25 mm (3.74 x 1 in.) borosilicate glass with rubber-lined screw caps
Sample requirements:25 mm sample cell: 20 mL minimum
0 to 70 °C (32 to 158 °F)
Source Lamp:LED
Stabilisation time:Immediately
Storage conditions:-20 to 60 °C
Units:FNU and NTU
Features
Improved and intuitive design
The TL23 Series’ large full colour touch screen display and intuitive user interface accelerate setup, calibration and measurement. An easy interface and guided procedures give you confidence in your results.
A smart device for more reliable measurements
The TL23 Series ensures stable readings and accurate analysis by capturing turbidity readings once the device detects sample stability. This quality step removes subjectivity and the need for repeated measurements.
Easy to use. Easy to Be Right
The TL23 Series provides everything you need at your fingertips. With a USB port for easy data export, sample identification for traceability, and self-diagnostics for quality assurance, Hach® makes it easy to Be Right.
