Portable Turbidimeter

Turbidimeters

Portable Turbidimeter

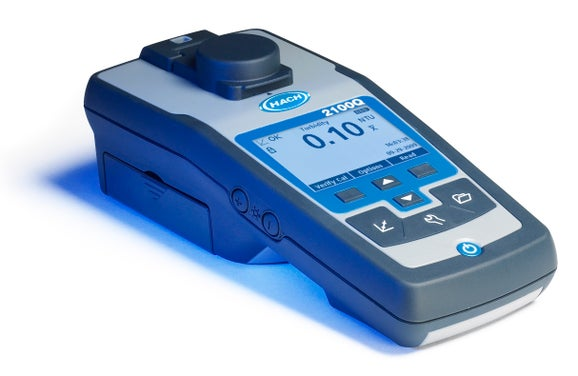

The 2100Q Portable Turbidimeter is ideal for use in the field or around the plant. It is easy to carry around and take multiple measurements from various collection points in your treatment process. With its intuitive user interface, the 2100Q makes it easy to take measurements and perform calibration and verification. Storing and transferring data from a portable turbidimeter has never been easier.

Specifications

Accuracy:± 2 % of reading plus stray light

Battery Requirements:4, AA

Certifications:CE certified

Compliance Certifications:CE/WEEE

Data logging:500 records

Dimensions (H x W x D):77 mm x 107 mm x 229 mm

Display Size:240 x 160 pixels

Display Type:Graphic LCD

Enclosure Rating:IP67

Includes:Instrument, case assembly, 4 AA alkaline batteries, 6 sample cells, StablCal ampule kit, silicone oil, oiling cloth, manual.

Interface:USB

Light source:tungsten filament lamp

Manual Languages:English, French, German, Italian, Spanish, Portuguese (BR), Portuguese (PT), Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish

Max. operating humidity:90 %

Measurement method:Ratio turbidimetric determination using a primary nephelometric light scatter signal (90°) and transmitted light scatter signal.

Measurement Modes:Normal (Push to Read), Signal Averaging, Rapidly Settling Turbidity

Operating temperature range:0 - 50 °C

Power Requirements:100 - 240 VAC, 50/60 Hz (with included USB+Power module)

Power Supply:Batteries (see Battery Requirements)

Range:0 - 1000 NTU

Reading modes:Normal (Push to Read)
Signal Averaging
Rapidly Setting Turbidity

Regulatory:EPA Method 180.1

Repeatability:± 1 % of reading or 0.01 NTU , whichever is greater

Response time:6 sec in normal reading mode

Sample Cell Compatibility:25 mm x 60 mm round

Sample requirements:15 mL (0.5 oz.)

Sample Volume:15 mL

Signal Averaging:Selectable on/off

Source Lamp:Tungsten filament lamp

Storage conditions:-40 °C to 60 °C

Stray Light:< 0.02 NTU

Units:NTU

User Interface:Button Graphic User Interface

Features

Easy calibration and verification

The Hach 2100Q Portable Turbidimeter provides confidence your measurements are right every time. On-screen assisted calibration and verification saves you time and ensures accuracy.
With an easy-to-follow interface, complicated manuals are not needed to perform routine calibrations. Single-standard RapidCal calibration offers a simplified solution for low level measurements.

Simple data transfer

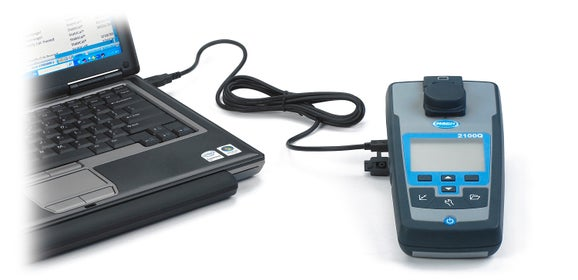

Data transfer with the 2100Q is simple, flexible, and doesn't require additional software. All data can be transferred to the included USB+Power Module and easily downloaded to your computer with a USB connection, providing superior data integrity and availability.

Accurate for rapidly settling samples

The Hach 2100Q Portable Turbidimeter incorporates an innovative Rapidly Settling Turbidity mode to provide accurate, repeatable measurements for difficult to measure, rapidly settling samples. An exclusive algorithm that calculates turbidity based on a series of automatic readings eliminates redundant measurements and estimating.

Convenient data logging

Up to 500 measurements are automatically stored in the instrument for easy access and backup. Stored information includes: date and time, operator ID, reading mode, sample ID, sample number, units, calibration time, calibration status, error messages, and the result.

Optical system for precision in the field

The two-detector optical system compensates for color in the sample, light fluctuation, and stray light, enabling analysts to achieve laboratory-grade performance on a wide range of samples, even under difficult site conditions.
