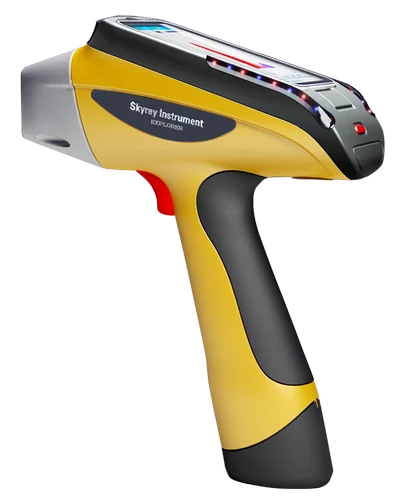

Explorer Handheld XRF EXPLORER 5000

Analytical Method: Energy dispersive X ray Fluorescence
analytical method Elements


Measuring Range: Atomic number from 12 to 92 (Elements from
magnesium (Mg) to Uranium (U)including, with Bi, Co, Cr, Cu, Fe,
Mn, Mo, Nb, Ni, Sn, Ti, V, W, Zn and Zr. can be measured
Simultaneous detector Elements: Simultaneous analysis 40
Elements. Microcomputer System: Customized system; CPU: 1G


System memory: 1G; extended stored maximum Support 32G;
standard 4G for mass storage data. The content range: ppm 99.99%
The detection time: 1 ̴60 seconds (A second report results) A built -
in system: GPS, WIFI, Bluetooth Power Supply: Rechargeable
lithium battery, standard is 9000mAh, sustainable work up to 12
hours; optional is 27000 mAh super battery with wide voltage
110V ̴220V universal adapter for recharging power supply Detection
Objective: Solid, Liquid, Power


Detector: SDD Detector or Fast -SDD detector (Optional) Detector
Resolution: Minimum can reach 128eV


The Excitation Source: 50 KV/200uA -Silver /rhodium target end
window integrated miniature X ray tube and high voltage power
supply Collimator and Filter: Collimator diameters are 4.0mm and
2.0mm, 6 kinds of filters with automatic switching Functions Video
System: 500 W pixel high resolution camera Display Screen: Brand
new 5 inch transflective LCD touch screen, the resolution is 1080 x
720

Detection: limit The minimum detection limits at 1̴500 ppm
Safety: Multiple safety protection, no tests, no radiation, radiation
levels at work are far below the international safety standards, and
has no sample telemetry, automatic shut X light tube function.
Standard radiation shields, thickened wall alloy test instrument

Specialty: Ore special edition analysis software, using intelligent one
key test Convenience of application: Key intelligent matching the
best curve that no need to select curve
Data transmission: Digital multi -channel technology, SPI data
transmission, quick analysis, the high count rate; waterproof mini
USB, and can be connected with a desktop computer Operating
Ambient Humidity: ≤90% Operating Environmental Temperature: -
20°C ̴50°C Instrument Dimension: 244 mm (length) x 90mm
(Width) x 330 mm (Height) Instrument Weight: 1.7 Kg Intelligent
Warning Signals Indicator System: Green light means power on, red
flushing means testing and yellow flushing means the problems.
