X-ray Fluorescence Spectrometers

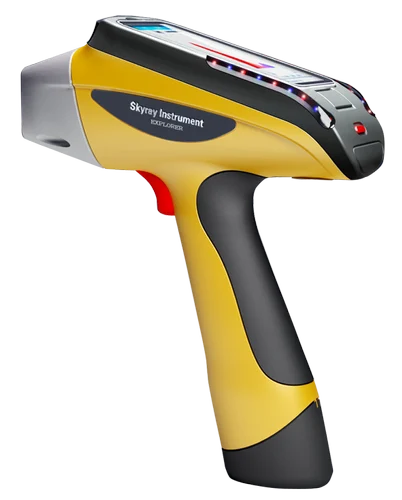

EXPLORER 7000 Mineral Ore Analyzer
Explorer XRF features Skyray newest intelligent software, making a Handheld X-Ray Fluorescence Spectrometer as easy as your everyday appliances. Specifically developed to simplify operation and user involvement most users can now learn how to operate the instrument in minutes. Skyray Intellectualized software is used across all applications modes. Up to 5 software databases can be configured on a single Explorer XRF-including Alloy Analysis, Soil analysis, RoHS and Mineral Analysis .With minimalistic modern layout, easy database switching and one click testing one Explorer XRF can replace up to five competitors Handheld XRFs.
Specifications
Specifications:
Analytical Method: Energy dispersive X ray fluorescence analytical method
Elemental Range: Atomic number from 12 to 92 [elements from magnesium(mg) to uranium(U)] can be measured
Simultaneous elements: Simultaneous analysis 40 elements
Microcomputer: CPU: 1G; system memory: 1G; maximum support
32G
Content range: ppm-99.99%
Detection time: 1-60 seconds
PDA: GPS, WIFI, Bluetooth
Power supply: Rechargeable lithium battery, standard 9000mAh,
optional 27000mAh 110V~220V universal adapter for recharging
Detection range: Solid, Liquid, Powder
Detector: SDD detector or Fast –SDD detector (optional)
Detector resolution: 128eV
Excitation source: 50KV/200uA-silver target end window
integrated miniature X ray tube and high voltage power supply
Collimator and filter: Collimator diameters are 4.0mm and 2.0mm, 6 filters with automatic switching function
Video system: 500W pixel high resolution camera
Display screen: 5 inch transflective LCD touch screen
Detection Limit: The minimum detection limits~5 ppm
Convenience of application: Intelligent curve matching
Data transmission: Digital multi-channel technology, SPI data transmission, waterproof mini USB
Operating ambient humidity: <90%
Operating environmental temperature: -20oC~+50oC
Features
- Rapid nondestructive detection and quick measurement with results within three seconds
- Fast SDD Detector features accuracy levels on par with Desktop XRF Systems
- Built-in GPS records altitude, latitude and longitude during testing
- Explorer XRF can be used continuously in harsh environments thanks to its waterproof and dustproof design
- Bluetooth, expandable SD Card for data storage and mini-USB for PC connection
- Customized workcurves can be added and modified by customer's demand
- Light elements detection without any Helium gas, auto-collimator switching and dual test mode for identifying light and regular elements during a single test
- Built-in 5 mega pixels high definition camera for real-time sample observation
