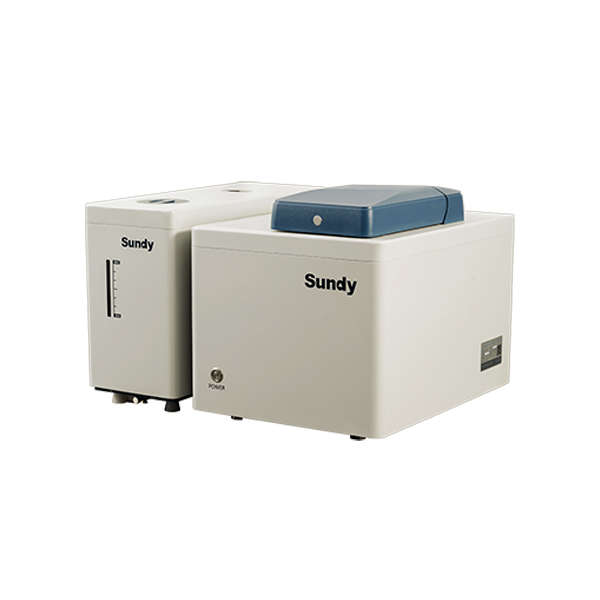

SDAC1200 Bomb Calorimeter

Application:

SDAC1200 automatic isoperibol oxygen bomb calorimeter can be used to determine calorific value.

Specifications

Description	SDAC1200
Analysis Time	Fast mode <10min, Standard mode <12min, Precision mode <14min (Default)
Temperature Resolution	0.0001K
Precision(RSD) (based on analysis of 1g Benzoic Acid)	<=0.05%
Heat Capacity Stability	<=0.2% within 12 months
System Structure	Benchtop
Conformance with Standard	ISO 1928, ISO 9831, ISO18125, ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, GB/T 213, GB/T 30727, AS 1038.5, BS EN 15400, BIS1350
Precision(RSD)	<=0.08%
Bomb Volume	250ml
Calorimeter Type	Isoperibol
Oxygen Filling	Fully automatic oxygen filling & releasing, fully automatic bomb raising & lowering
Bomb Washing	Manual
Max. Bomb Pressure	20MPa
Bomb Identity	Yes
Gas Requirement	99.5% Oxygen
Water Requirement	Distilled Water
Energy Measurement Range	0~50000J
Bucket Filling	Automatic
Constant Volumetric Tank with Temp Control Device	Bucket determine water volume automatically
Independent Bucket and Jacket Water System	Yes
Stirring Method	Propeller
Power Inverter	No
Ambient Temperature	10-35°C
Average Temperature Increase	2°C
Temperature Measurement	PT1000
Working Temperatures	35°C
Cooling Method	Refrigerating Device
Network	Yes
Power	AC 220V (-10% +10%) 50/60Hz
Max. Power	0.6KW
Dimension	Main body: 428x565x485 mm Water tank: 220x565x410 mm
Weight	50kg
Advance Calculation	Yes
Analysis Report	Yes
Statistics Report	Yes
System Monitor	Yes

Optimized Design & Automation

Accurate & Reliable Results

The SDAC1200 is suitable for laboratories handling coal, coke, petroleum oil, cement black meal, biomass fuels and building material testing.

Contact the GenNEXT sales team for brochure, specifications, pricing, installation support and availability details.
