Bomb Calorimeter

Bomb Calorimeter

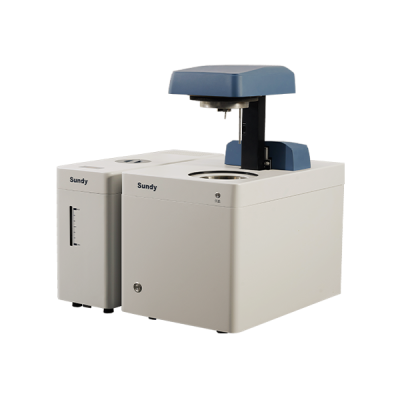

The SDAC1200 Bomb Calorimeter is a highly automated isoperibol oxygen bomb calorimeter designed for the accurate and rapid determination of the calorific value of solid and liquid combustible materials. It is suitable for the analysis of coal, coke, petroleum products, biomass fuels, cement raw meal, solid and hazardous waste, and other combustible materials.

Specifications

Analysis Time Fast mode <8min, Standard mode<12min, Precision mode<14min

Temperature Resolution 0.0001℃

Heat Capacity Precision ≤0.08%

Calorimeter Type Isoperibol

Ignition method laser

Heat Capacity Stability ≤0.20%within 12 months

Balance Connection RS232

Power Requirement 220V±10%，50/60Hz

Features

Accurate and Stable Results

The specially designed isothermal jacket creates a controlled and uniform thermal environment around the inner vessel. The outer-vessel water temperature fluctuation is maintained below 0.05°C throughout the day and below 0.01°C during a single test, reducing the influence of ambient temperature and airflow on test results.

The independent inner- and outer-vessel water circuits also prevent water filling and draining from disturbing the outer-vessel temperature, ensuring reliable results for the first sample, continuous samples, and samples tested after an interval.
